FlowVLA: Enabling World Dynamics Understanding through Pluggable 3D Flow Learning

Junhyeong Go; Mingyu Jung; Woobin Im; Jongbin Ryu

CoRL 2026 · Accepted

FlowVLA

Enabling World Dynamics Understanding
through Pluggable 3D Flow Learning

Junhyeong Go¹Mingyu Jung¹Woobin Im²Jongbin Ryu¹

¹ Ajou University² Samsung Electronics

Paper

CodeComing soon

BibTeX

1 Abstract

FlowVLA is a reconstruction-guided, pluggable 3D flow learning framework that uses temporally aligned 3D flow from RGB observations only during training to help Vision-Language-Action (VLA) models learn action-relevant dynamics. Under dual-level flow supervision, point-level flow guides the model to forecast future displacements of task-critical 3D points, while TCP-level flow aggregates these motions to align with the robot’s Tool-Center-Point (TCP) trajectories, coupling scene-level motion with precise control signals. Extensive evaluations across simulation and real-world experiments demonstrate that FlowVLA consistently improves manipulation performance, zero-shot robustness, and data efficiency; it discards lightweight auxiliary heads at inference and introduces no additional 3D sensor inputs, inference-time architectural modifications, or additional inference-time computation.

FlowVLA Video

2 Method

We adopt VDPM, a model intended to recover temporally consistent 3D point trajectories from RGB observations, to obtain a 3D motion signal without any other sensors. Here, “world dynamics” denotes manipulation-relevant 3D scene motion, not general causal or physical understanding of forces or contact mechanics. Before constructing flow targets, all 3D points are expressed in the robot base coordinate to ensure that the reconstruction-derived point trajectories are directly comparable with robot motion. Since not all points contribute equally to action-relevant dynamics, we prioritize the selection of dynamically informative points according to their motion magnitude.

The future 3D flow targets supervise the VLA with a dual-level scene-to-control objective: the action latent is encouraged by point-level flow to encode dense 3D scene motion, while motion cues are distilled into a control-oriented representation aligned with end-effector displacement by TCP-level flow. The final objective combines the action loss with the auxiliary flow losses. Critically, all auxiliary heads and 3D geometric inputs are discarded at inference. The quality of the auxiliary supervision depends on the reconstruction model. In addition, while the visualization in Appendix C.1 suggests that magnitude-based point selection tends to capture dynamically active regions, it does not explicitly guarantee task relevance.

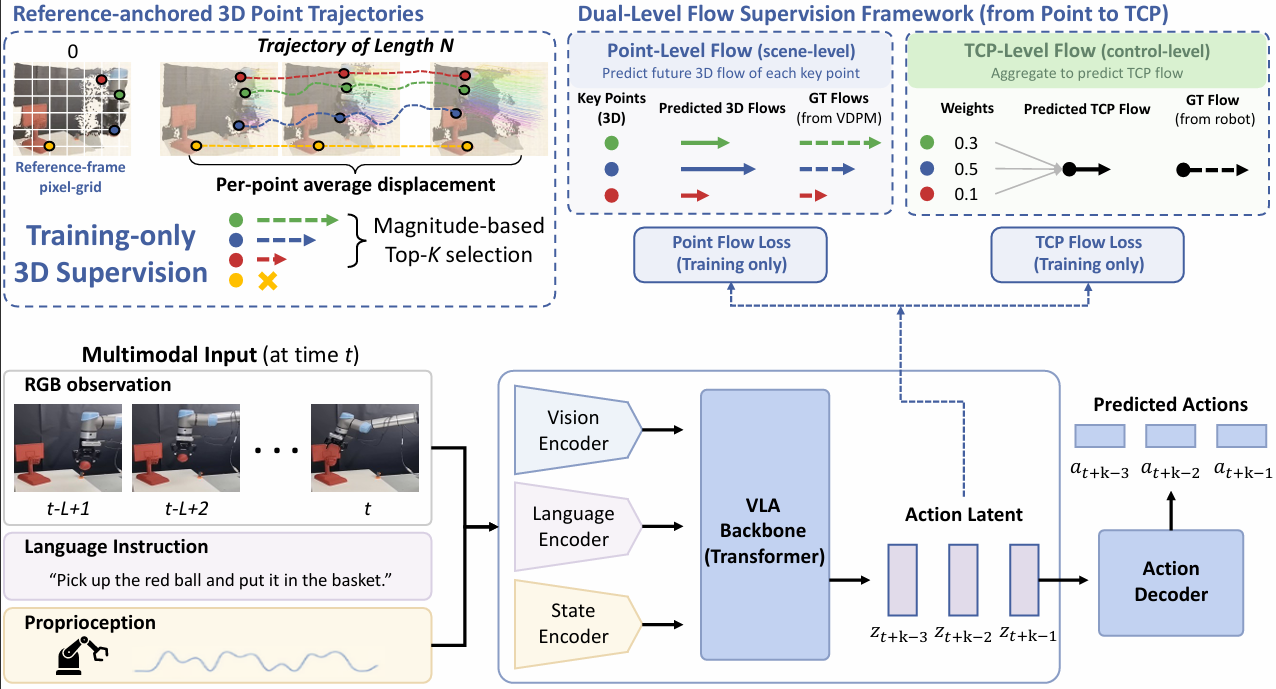

RGB observation, language instruction, and proprioception are inputs to the VLA backbone. During training, point-level flow and TCP-level flow supervise the action latent. — Training-only 3D flow supervision. Reference-anchored 3D points are tracked over time to construct 3D flow targets, from which **top-K motion-salient points** are selected. **Point-Level Flow** predicts scene-level motion, while **TCP-Level Flow** aggregates it into end-effector motion, bridging scene-level dynamics and control-relevant motion.Paper · Figure 1

2-a VDPM Visualization

For visual clarity, we display all reconstructed points in this analysis, whereas FlowVLA uses only the top-K dynamically informative points selected by the flow magnitude during training. The visualization confirms that VDPM can recover temporally consistent 3D point motion from RGB observation sequences.

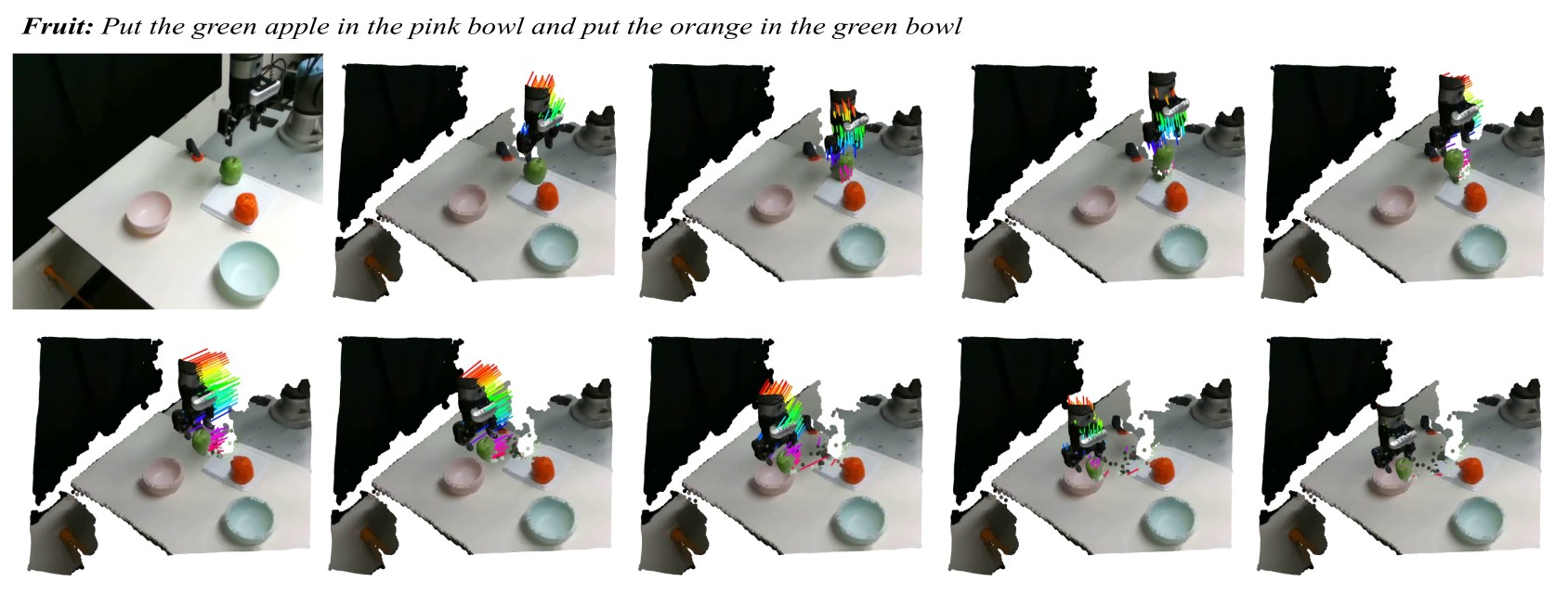

Panel 1 of 10: RGB observation for Fruit — VDPM 3D point trajectory visualization on the real-world Fruit task.Paper · Figure 8

Panel 2 of 10: Fruit VDPM 3D point trajectories — VDPM 3D point trajectory visualization on the real-world Fruit task.Paper · Figure 8

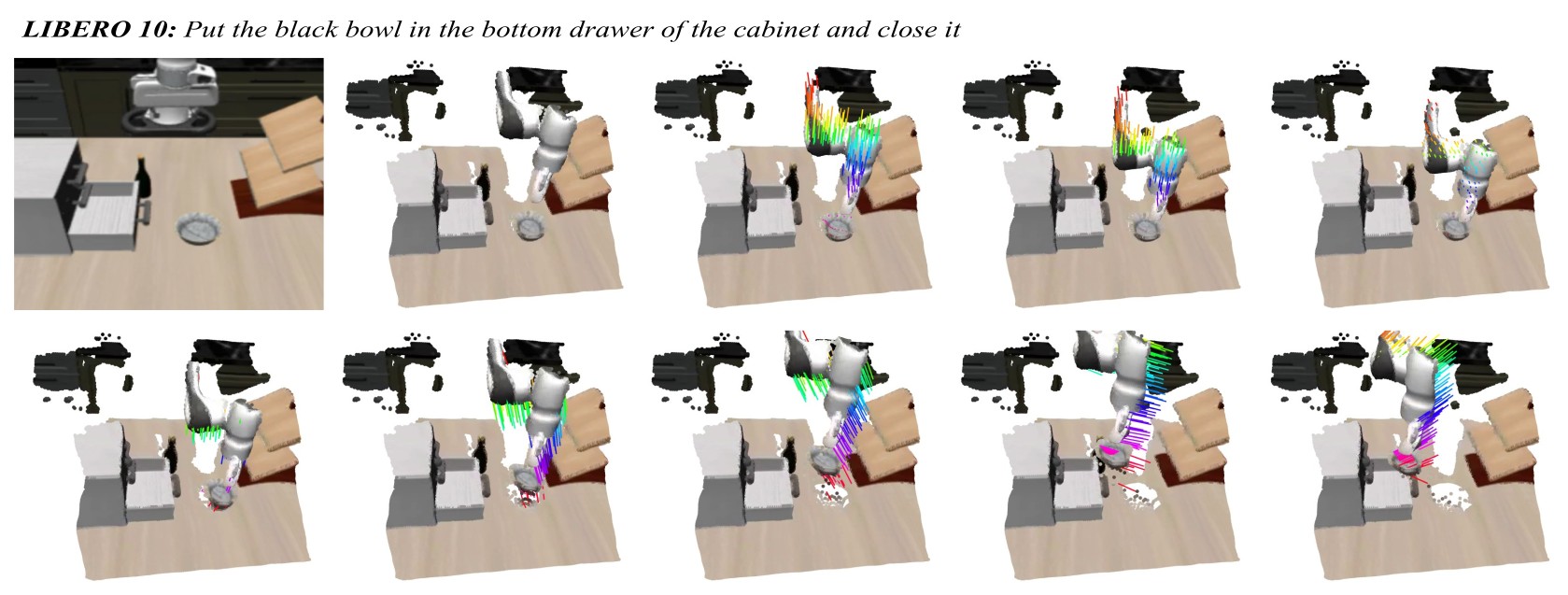

Panel 1 of 10: RGB observation for LIBERO-10 — VDPM 3D point trajectory visualization on the LIBERO-10 task.Paper · Figure 9

Panel 2 of 10: LIBERO-10 VDPM 3D point trajectories — VDPM 3D point trajectory visualization on the LIBERO-10 task.Paper · Figure 9

3 Simulation Experiments

3-a LIBERO

Average

Seer: 87.3%
Seer + FlowVLA: 92.4%

π_0.5: 96.8%
π_0.5 + FlowVLA: 97.5%

Method	Spatial	Object	Goal	Long	Average
Diffusion PolicyRSS 2023	78.3	92.5	68.3	50.5	72.4
OpenVLACoRL 2024	84.7	88.4	79.2	53.7	76.5
π₀RSS 2025	96.8	98.8	95.8	85.2	94.2
CoT-VLACVPR 2025	87.5	91.6	87.6	69.0	83.9
π₀-FASTRSS 2025	96.4	96.8	88.6	60.2	85.5
SpatialVLARSS 2025	88.2	89.9	78.6	55.5	78.1
OctoRSS 2024	78.9	85.7	84.6	51.1	75.1
UniVLARSS 2025	96.5	96.8	95.6	92.0	95.2
SeerICLR 2025	84.2	94.8	89.8	80.4	87.3
Seer + FlowVLA	93.5	96.5	91.8	87.8	92.4
π_0.5CoRL 2025	98.8	98.2	98.0	92.4	96.8
π_0.5 + FlowVLA	99.0	98.8	97.4	94.8	97.5

3-b LIBERO-Plus

Zero-shot evaluation, without additional fine-tuning.

Average

Seer: 36.1%
Seer + FlowVLA: 41.1%

π_0.5: 57.5%
π_0.5 + FlowVLA: 59.2%

Method	Camera	Robot	Language	Light	Background	Noise	Layout	Average
OpenVLACoRL 2024	0.8	3.5	23.0	8.1	34.8	15.2	28.5	15.6
WorldVLAarXiv 2025	0.1	27.9	41.6	43.7	17.1	10.9	38.0	25.0
UniVLARSS 2025	1.8	46.2	69.6	69.0	81.0	21.2	31.9	42.9
SeerICLR 2025	22.1	47.7	86.3	12.3	2.0	22.9	50.0	36.1
Seer + FlowVLA	24.6	54.6	87.0	25.1	8.1	25.5	57.2	41.1
π_0.5CoRL 2025	21.4	39.1	68.4	86.7	83.3	36.1	84.6	57.5
π_0.5 + FlowVLA	24.1	39.9	68.8	90.4	87.1	37.7	84.7	59.2

3-c Data Efficiency and Computational Cost

FlowVLA consistently outperforms the baseline across all data regimes when trained with 10%, 25%, and 50% of the full dataset. It is also evident that the computational overhead is kept at a manageable level: the proposed flow heads increase the total number of parameters by only 0.34% and add no inference-time computation. The only cost occurs during training, where total training time increases by approximately 1.26×.

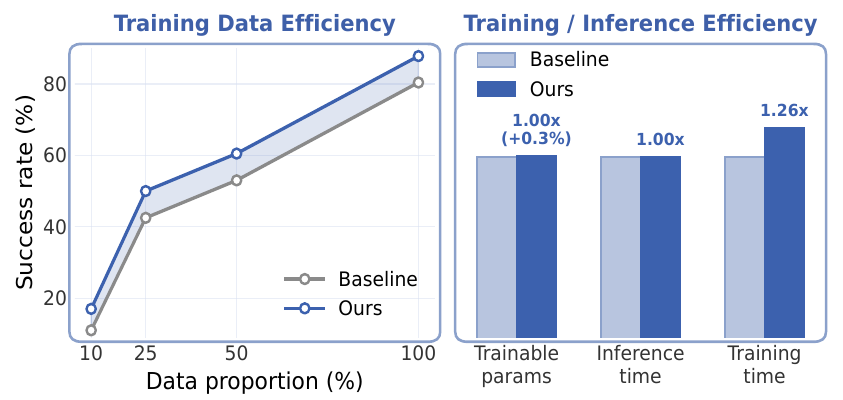

Training data efficiency: success rate (%) by data proportion (%). — Analysis of training data efficiency and computational cost for Seer on LIBERO-Long.Paper · Figure 2

Computational cost: trainable parameters, inference time, and training time relative to Seer. — Analysis of training data efficiency and computational cost for Seer on LIBERO-Long.Paper · Figure 2

4 Real-World Experiments

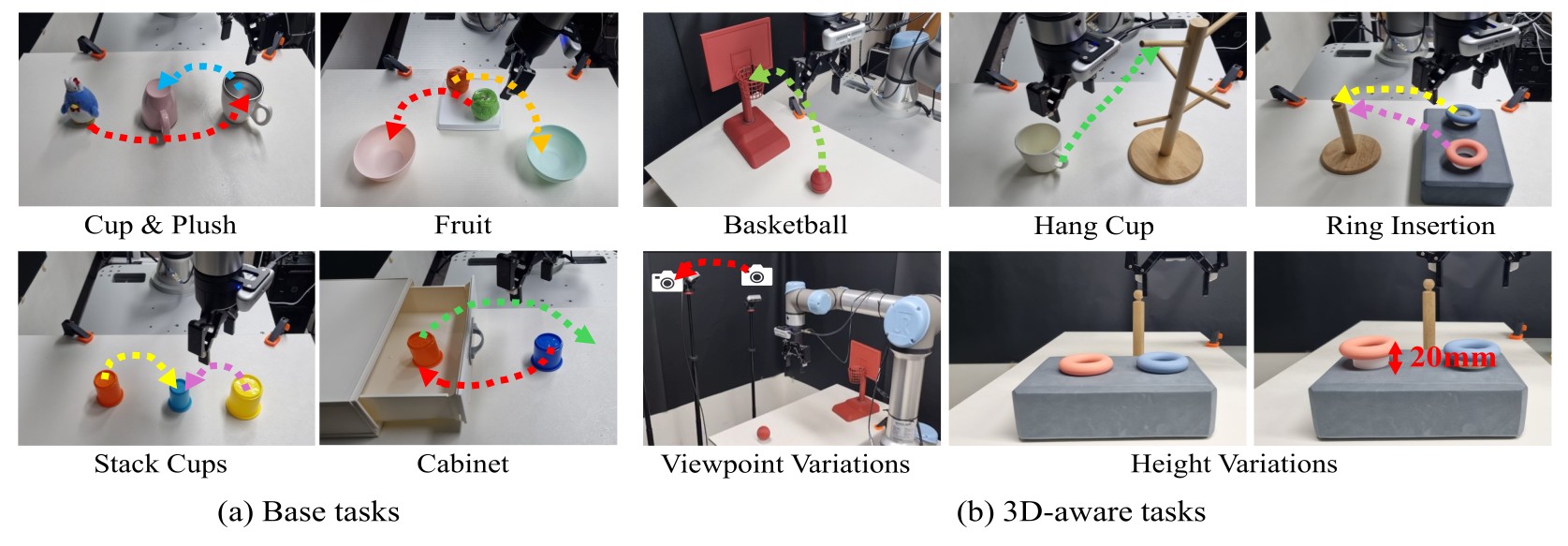

We compare Seer with and without FlowVLA on seven UR5e manipulation tasks, using third-person and wrist-view RGB observations. Each task uses 40 training demonstrations and 15 evaluation trials per policy.

4-a Setup & Tasks

Robot: UR5e
Gripper: Robotiq 2F-85
Cameras: 2 × RealSense D435iThird-person and wrist views

4-b Real-World Results

Pick up the white cup and place it on top of the upside-down pink cup, then pick up the blue penguin plush toy and put it in the white cup

Seer 4× speed

Seer + FlowVLA 4× speed

Open the drawer, take the orange cup out and put it on the table, then put the blue cup in the drawer and close the drawer

Seer 8× speed

Seer + FlowVLA 8× speed

Pick up the red ball and place it in the basketball hoop

Seer 4× speed

Seer + FlowVLA 4× speed

Pick up the white mug and hang it on the wooden mug rack

Seer 4× speed

Seer + FlowVLA 4× speed

Put the blue ring on the wooden stand, then put the pink ring on the wooden stand

Seer 4× speed

Seer + FlowVLA 6× speed

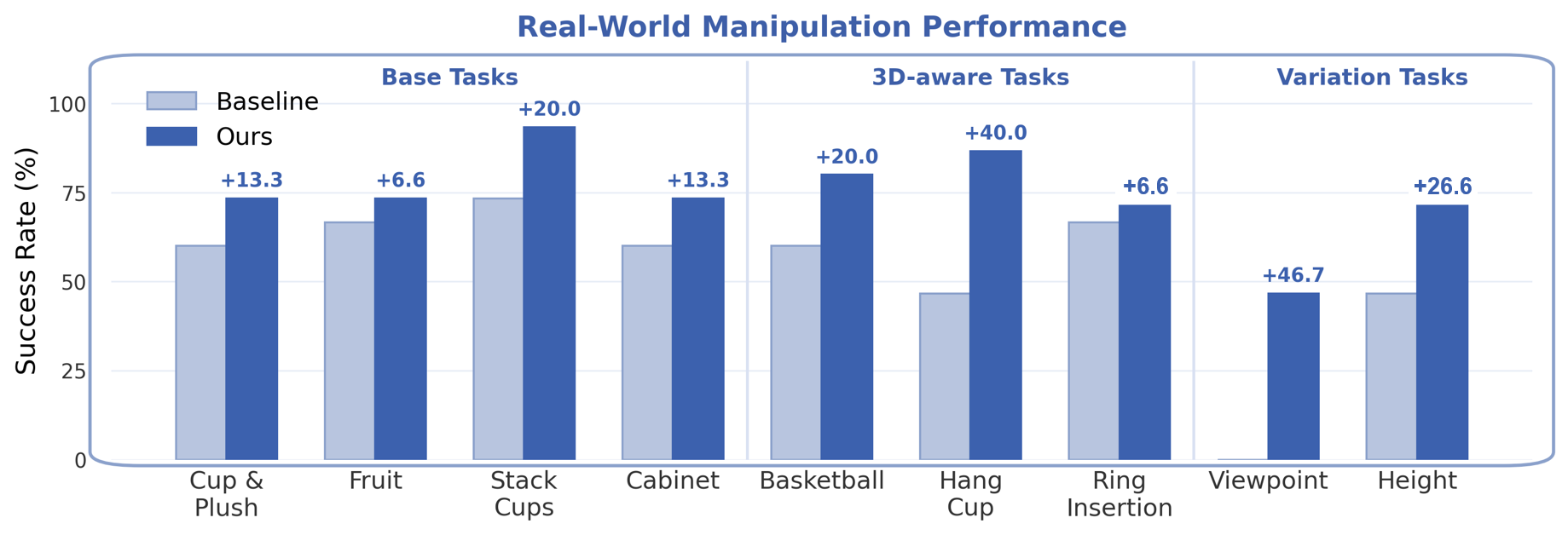

Success rates for Seer and Seer + FlowVLA across four base tasks, three 3D-aware tasks, and two variation conditions. FlowVLA improves success in each condition; exact rates follow in the table. — Paper · Tables 5–6
Success rate (%)

4-c Test-time Variations

For Basketball, we adjust the angle and height of the third-person camera; the initial ring height is modified for Ring Insertion.

Seer 6× speed

Seer + FlowVLA 6× speed

Removal of the ring support (20 mm).

Seer 4× speed

Seer + FlowVLA 6× speed

4-d Real-World Results with π_0.5

Condition	π_0.5	π_0.5 + FlowVLA
Basketball	66.7	86.7
Hang Cup	60.0	93.3
Basketball · Moving Background	33.3	53.3

5 Analysis

5-a Ablation Studies

We verify the contribution of each design choice through a component ablation study using Seer on LIBERO-Long. Removing either TCP-level flow or point-level flow degrades performance, demonstrating that FlowVLA benefits from both scene-level motion grounding and end-effector-aligned control supervision.

Component analysis on LIBERO-Long

Method	Avg.
Baseline	80.4
w/o coordinate alignment	86.3
w/o reference-frame alignment	85.2
w/o magnitude-based selection	84.0
w/o TCP-level loss	83.8
w/o point-level loss	84.8
FlowVLA	87.8

Effect of supervision signal

Supervision Signal	Avg.
None (Baseline)	80.4
2D optical flow (CoTracker)	84.5
Static 3D point cloud	85.0
Dynamic 3D flow (FlowVLA)	87.8

5-b TCP-Level Aggregation Weight Visualization

We further visualize the learned aggregation weights of the TCP-level branch to examine how FlowVLA transfers scene-level 3D motion cues into control-relevant dynamics. Magnitude-based selection identifies K motion-salient 3D points from reconstruction-derived trajectories, and we visualize the top-512 points with the largest TCP-level aggregation weights. The TCP-level aggregation module further refines these scene-level motion cues by assigning larger weights to points around the robot TCP and object–robot interaction region.

Task: Stack Cups

RGB

Magnitude-Selected 3D Points

Aggregation-Weighted Points

The 512 highest-weight points.

Predicted TCP

Ground truth in black; prediction in red.

5-c 3D Object Points

The 3D points in this analysis are labeled in the MuJoCo simulator, with object categories shown as Gripper, Arm, and Others. The average object-point fraction across 100 random examples is 29.1% for all points and 84.8% for the 512 points with the highest TCP-level aggregation weights.

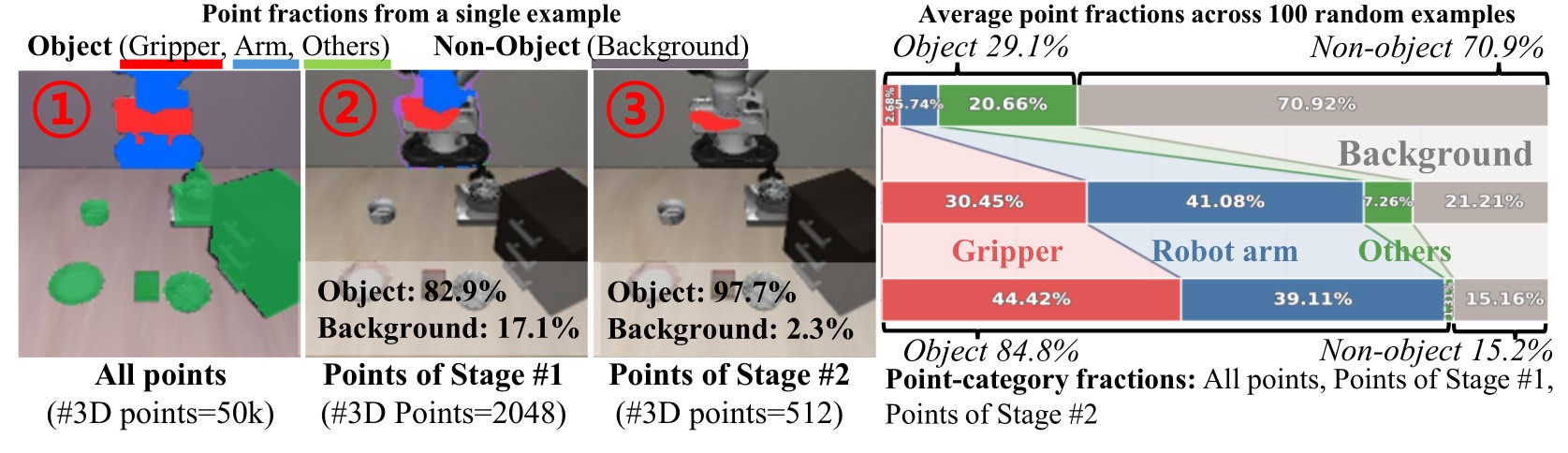

Point fractions from a single example: all points, magnitude-selected points (2,048), and points with the highest TCP-level aggregation weights (512). — Point-category fractions. Point fractions from a single example and average point fractions across 100 random examples.

Average point fractions across 100 random examples. — Point-category fractions. Point fractions from a single example and average point fractions across 100 random examples.

6 Citation

@article{go2026flowvla,
  title={FlowVLA: Enabling World Dynamics Understanding through Pluggable 3D Flow Learning},
  author={Go, Junhyeong and Jung, Mingyu and Im, Woobin and Ryu, Jongbin},
  journal={arXiv preprint arXiv:2610.16160},
  year={2026},
  url={https://arxiv.org/abs/2610.16160}
}
